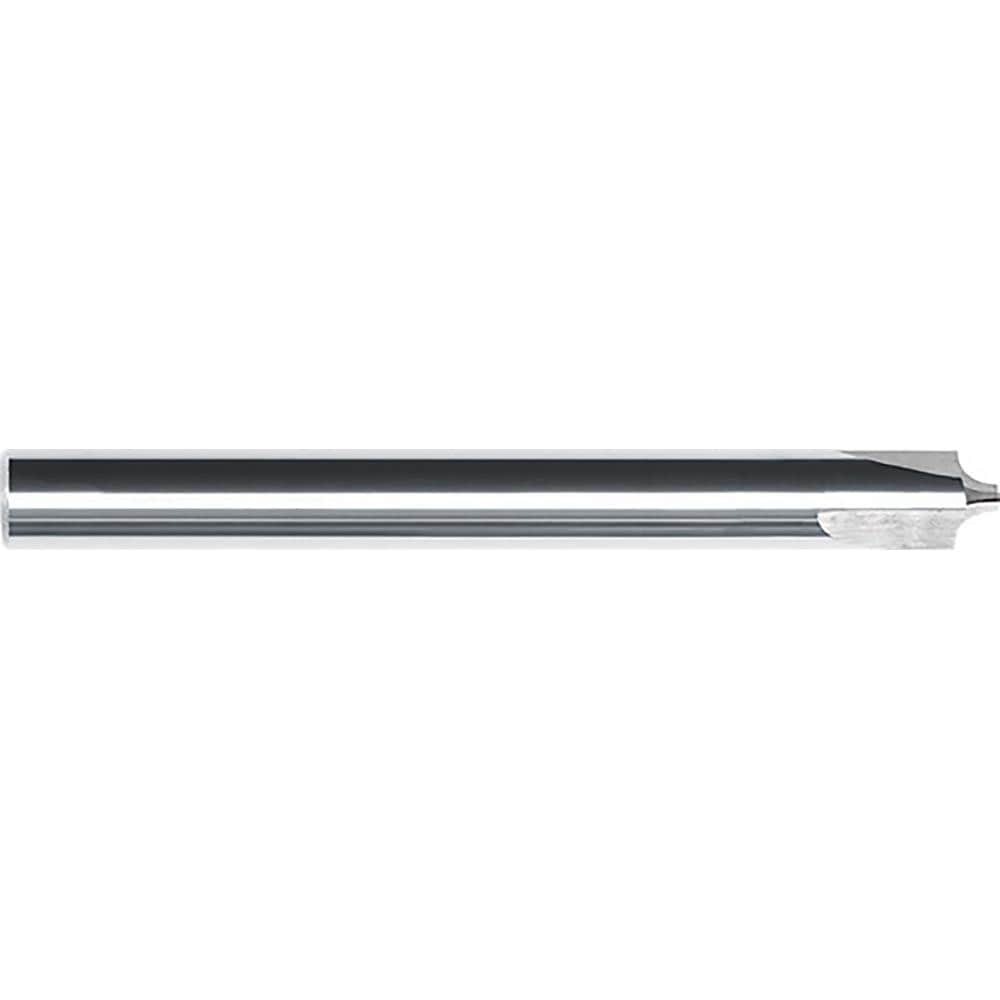

Corner Rounding End Mill: 1/32" Radius, 3/16" Dia, 3 Flutes, Solid Carbide
Item #: 80905821
Brand: Internal Tool
Model #: 170-1050
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Radius (Decimal Inch) | 0.0312 |
| Radius (Inch) | 1/32 |
| Shank Type | Cylindrical |
| Flute Type | Straight |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Tip Diameter (Decimal Inch) | 0.0400 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 170 |
| Helix Angle | 0.00 |
| Coolant Through | No |
| Single Or Double End | Single End |
| Coating/Finish | Uncoated |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
