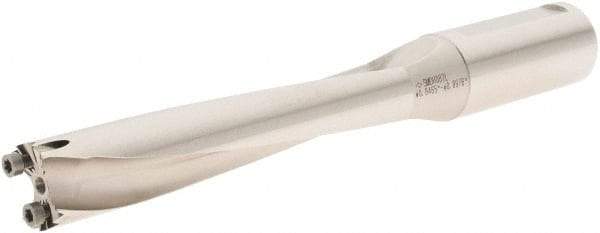

Sumitomo - 21.51 to 22.8mm Diam, 5xD, 4.882" Max Depth, 1" Shank Diam, 5-5/8" Flute, 7-7/8" OAL, Replaceable Tip Drill - Series SMD
Item #: 02454502
Brand: Sumitomo
Model #: 5L00W0Y
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 21.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.8469 |
| Maximum Drill Diameter (mm) | 22.80 |
| Maximum Drill Diameter (Decimal Inch) | 0.8976 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.8820 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 5.6240 |
| Body Length (Decimal Inch) | 5.6240 |
| Overall Length (Decimal Inch) | 7.8740 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 2.2500 |
