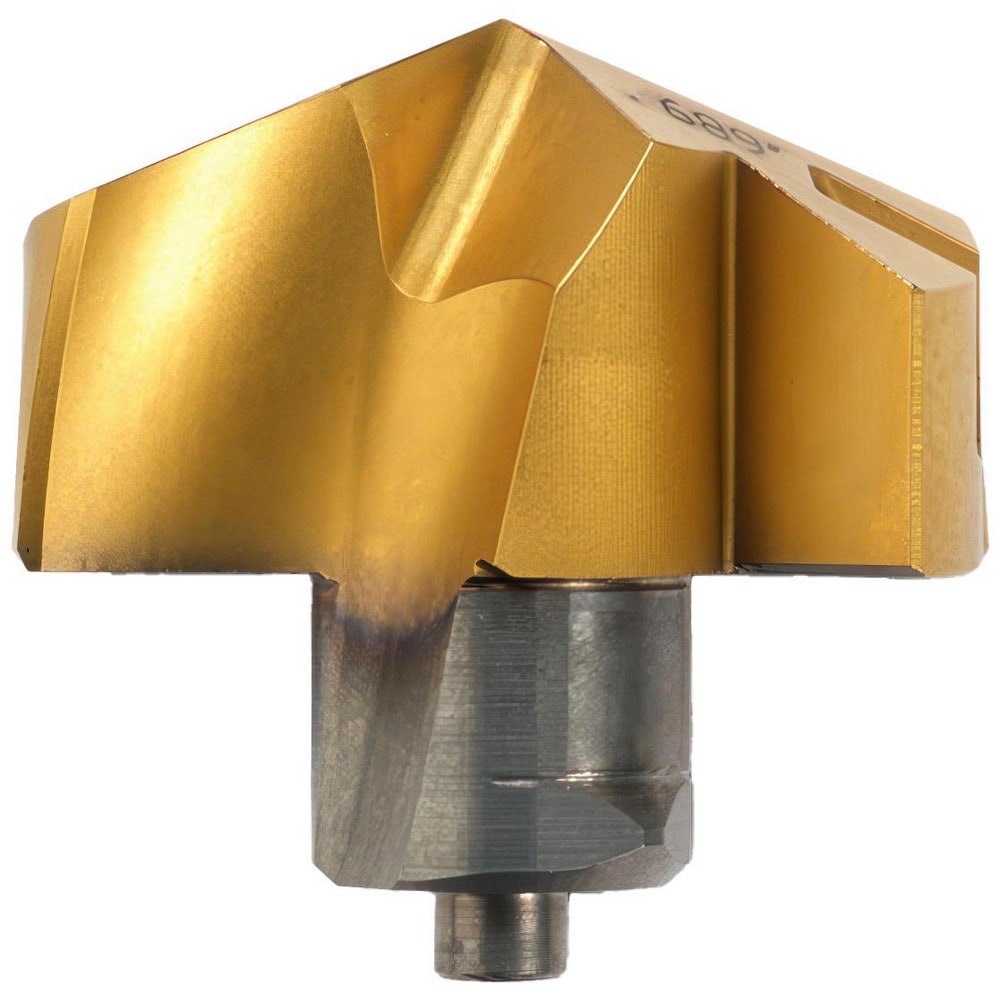

Replaceable Drill Tips: TPA1670R01 IN2505, 17.00 mm Dia, 140 deg Point, IN2505
Item #: 71471452
Brand: Ingersoll Cutting Tools
Model #: 5120067
Product Specifications
| Cutting Diameter (mm) | 17.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Material Grade | P15; P30 |
| Series | TPA |
| Coating Process | PVD |
| Insert Seat Size | 16 |
| Functional Length (Decimal Inch) | 0.2660 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Standards | ANSI |
| Height (mm) | 9.00 |
| Overall Length/Projection (Decimal Inch) | 0.3660 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | TPA1670R01 IN2505 |
| Coolant Through | Yes |
| Flute Length (mm) | 7.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | TPA |
| UNSPSC Code | 23242105 |
| Applications | Drilling; Coolant-Thru; Spot Drilling |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Cutting Diameter (mm) | 17.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Material Grade | P15; P30 |
| Series | TPA |
| Coating Process | PVD |
| Insert Seat Size | 16 |
| Functional Length (Decimal Inch) | 0.2660 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Standards | ANSI |
| Height (mm) | 9.00 |
| Overall Length/Projection (Decimal Inch) | 0.3660 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | TPA1670R01 IN2505 |
| Coolant Through | Yes |
| Flute Length (mm) | 7.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | TPA |
| UNSPSC Code | 23242105 |
| Applications | Drilling; Coolant-Thru; Spot Drilling |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| MSC Part # | 71471452 |
| Mfr Part # | 5120067 |
