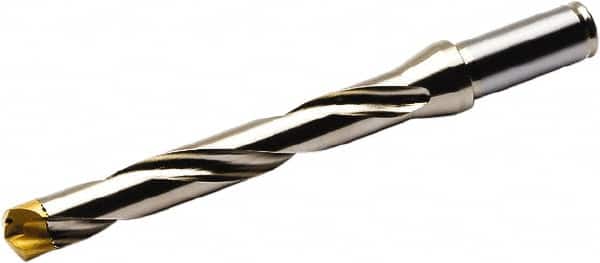

Seco - 16 to 16.99mm Diam, 7xD, 110mm Max Depth, 5/8" Shank Diam, 4.862" Flute, 7.461" OAL, Replaceable Tip Drill - SD107 Toolholder, Series Crownloc
Item #: 02326445
Brand: Seco
Model #: 40008
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 4.3307 |
| Maximum Drill Depth (mm) | 110.00 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Toolholder Style | SD107 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 4.8620 |
| Body Length (Decimal Inch) | 5.5710 |
| Toolholder Coating | TiAlN |
| Overall Length (Decimal Inch) | 7.4610 |
| Shank Length (Decimal Inch) | 1.8900 |
