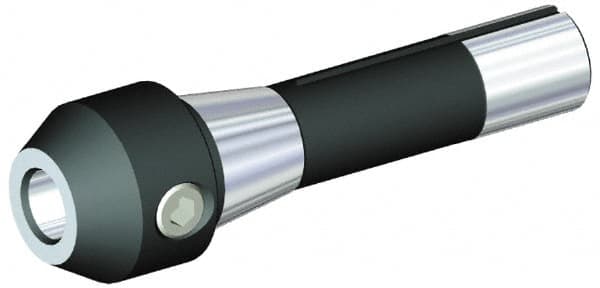

Kennametal - R8 Taper Shank 1" Hole End Mill Holder/Adapter - 2" Nose Diam, 3-1/16" Projection, 7/16-20 Drawbar, Through-Spindle Coolant
Item #: 02293090
Brand: Kennametal
Model #: 1286053
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | R8 |
| Hole Diameter (Inch) | 1 |
| Nose Diameter (Inch) | 2 |
| Projection (Inch) | 3-1/16 |
| Projection (Decimal Inch) | 3.0625 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 62.48 |
| Clamping Depth (Decimal Inch) | 2.4600 |
| Overall Length (Decimal Inch) | 7.0600 |
| Overall Length (mm) | 179.32 |
| Balanced to (RPM) | 8000 |
| Coolant Type | Through-Spindle |
| Drawbar Thread Size | 7/16-20 |
