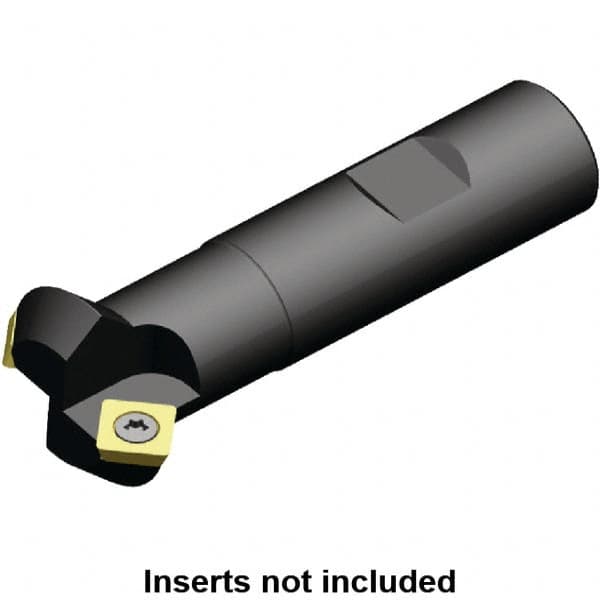

Kennametal - 45° Lead Angle, 32mm Max Cut Diam, 20mm Min Cut Diam, 6.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, SD.. 0903.. Insert Style, 83mm Overall Length, Straight Shank, 90° Included Angle
Item #: 02166395
Brand: Kennametal
Model #: 1024581
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.7874 |
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Lead Angle | 45 |
| Included Angle | 90 |
| Overall Length (mm) | 83.00 |
| Overall Length (Decimal Inch) | 3.2677 |
| Insert Style | SD.. 0903.. |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.50 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Head Length (mm) | 32.00 |
| Weldon Flat | Yes |
| Shank Length (mm) | 51.00 |
| Shank Length (Decimal Inch) | 2.0079 |
| Maximum RPM | 23900 |
