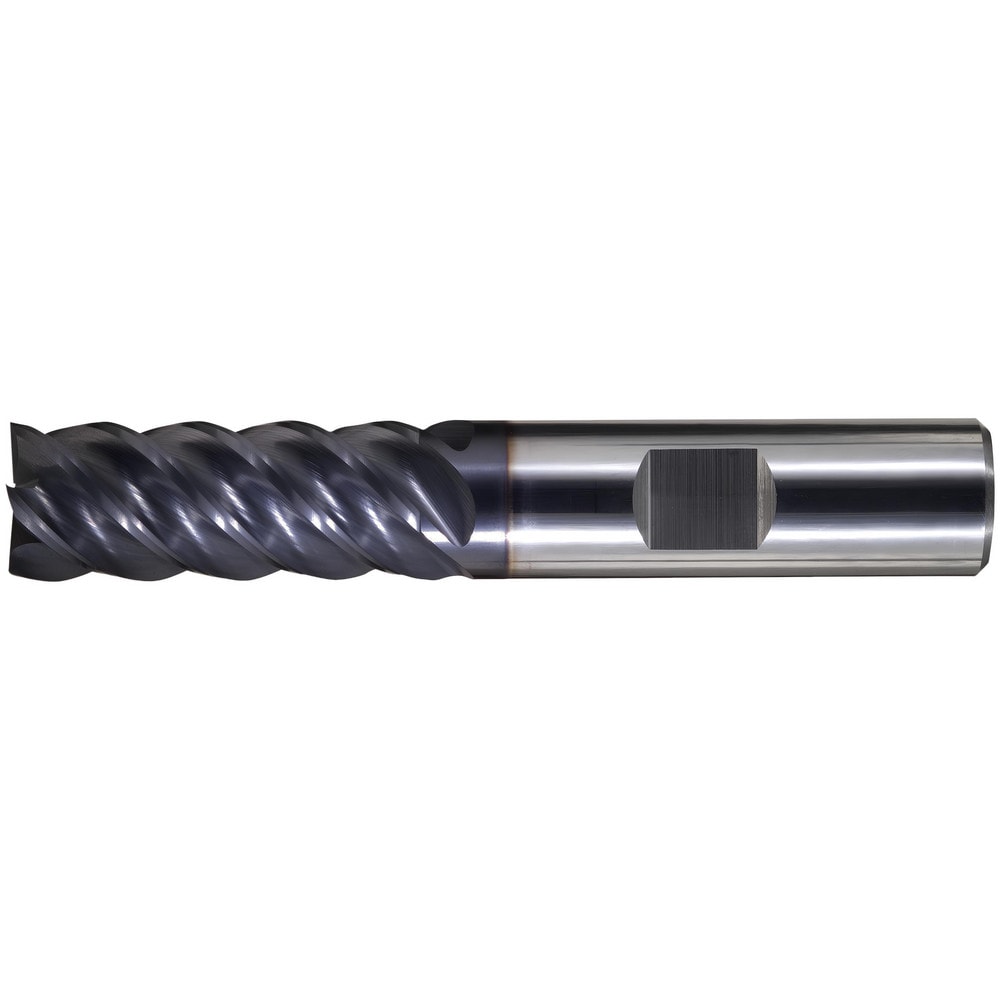

Square End Mill: 3/4" Dia, 3-1/4" LOC, 5 Flute, Solid Carbide
Item #: 67157511
Brand: Cleveland
Model #: C80449
Product Specifications
| Mill Diameter (mm) | 19.05 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 3.2500 |
| Length of Cut (Inch) | 3-1/4 |
| Length of Cut (mm) | 82.55 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Single Or Double End | Single |
| Coating/Finish Family | TiAlN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 47 |
| Primary Workpiece Material | Stainless Steel; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; H; M |
| Coating/Finish | TiAlN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Sub Micrograin |
| Length Type | Long |
| Series | CEM-EMS-5-TA |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 19.05 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 3.2500 |
| Length of Cut (Inch) | 3-1/4 |
| Length of Cut (mm) | 82.55 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Single Or Double End | Single |
| Coating/Finish Family | TiAlN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 47 |
| Primary Workpiece Material | Stainless Steel; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; H; M |
| Coating/Finish | TiAlN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Sub Micrograin |
| Length Type | Long |
| Series | CEM-EMS-5-TA |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 67157511 |
| Mfr Part # | C80449 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
