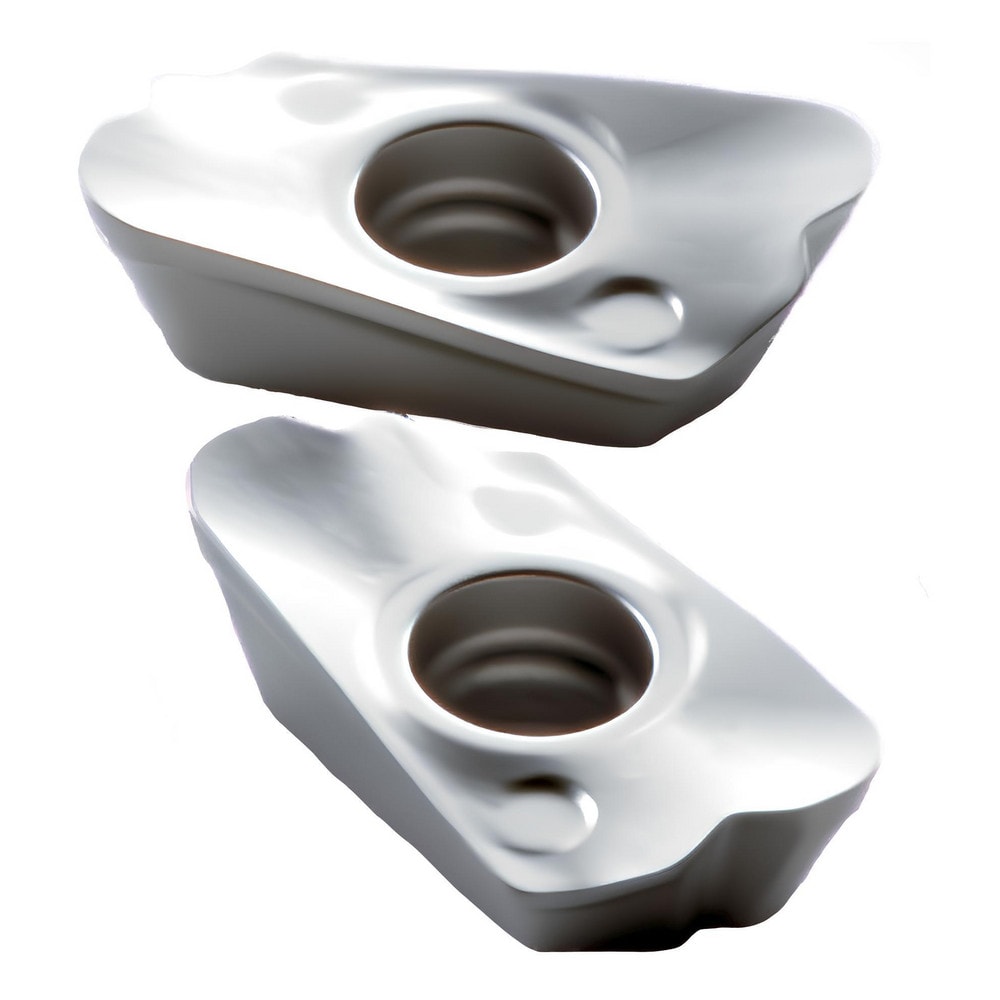

Milling Insert: ZDKT11T308SR-GM XC3030, Solid Carbide
Item #: 33626920
Brand: OSG
Model #: 7825032
Product Specifications
| Insert Style | ZDKT |
| Insert Size | 11 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | XC3030 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1496 |
| Thickness (mm) | 3.80 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 15.00 |
| Insert Size Code | 11T308 |
| Inscribed Circle (Inch) | 17/64 |
| Inscribed Circle (Decimal Inch) | 0.2656 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0551 |
| Series | 78PSE |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | ZDKT11T308SR-GM |
| Iso Code | ZDKT11T308SR-GM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | 7825032 |
| Cutter Series Compatibility | 78PSE |
| Chip Breaker | GM |
| UNSPSC Code | 23171618 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 1.40 |
| Width (Decimal Inch - 4 Decimals) | 0.2677 |
| Width (mm - 2 Decimals) | 3.80 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
