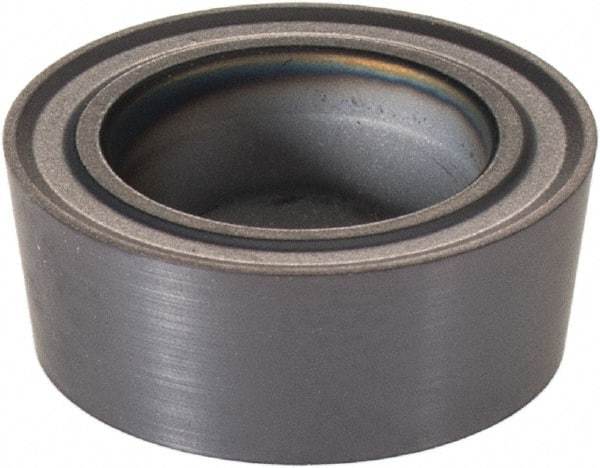

Kennametal - RCGH43 Grade KC5510 Carbide Turning Insert - TiAlN Finish, Round, 1/2" Inscr Circle, 3/16" Thick
Item #: 01957737
Brand: Kennametal
Model #: 2263578
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGH |
| Insert Size | 43 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Manufacturer's Grade | KC5510 |
| Coating | TiAlN |
| Material Grade | C3/C4 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Round |
