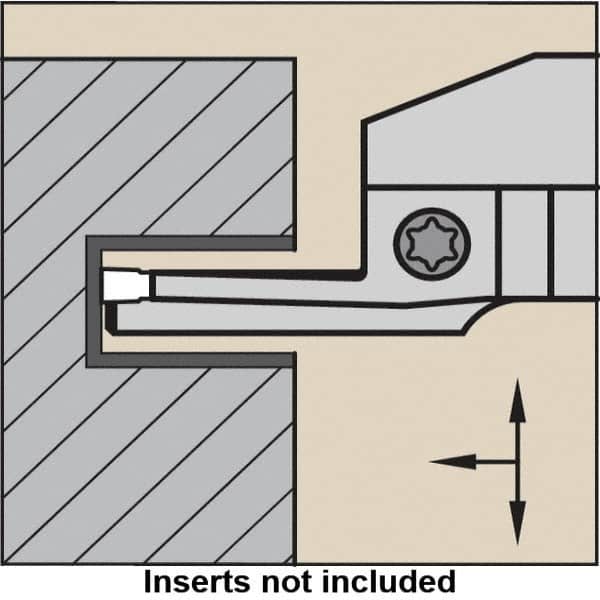

Kennametal - 2mm Groove Width, 12mm Max Depth of Cut, Right Hand Cut, A4M-B Indexable Grooving Blade - 2 Seat Size, Series A4
Item #: 01946714
Brand: Kennametal
Model #: 3051680
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Blade Style | A4M-B |
| Series | A4 |
| Minimum Workpiece Diameter (Decimal Inch) | 2.3620 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.3070 |
| Overall Length (mm) | 17.50 |
| Overall Length (Decimal Inch) | 0.6890 |
| Insert Seat Size | 2 |
| Cartridge Size | 50 |
