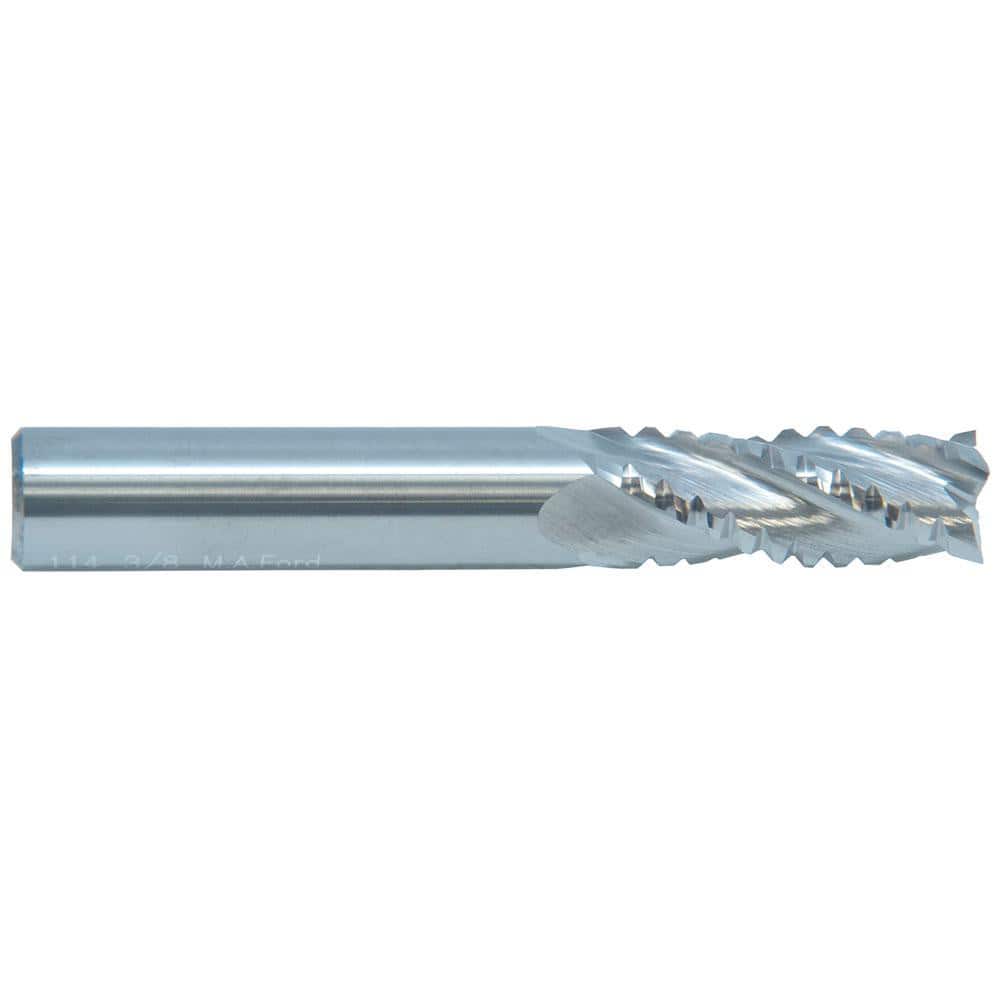

Square End Mill: 3/4'' Dia, 1-1/2'' LOC, 3/4'' Shank Dia, 4'' OAL, 4 Flutes, Solid Carbide Single End, TiN Finish, Spiral Flute, Centercutting, RH Cut, RH Flute, Series 114
Item #: 01946482
Brand: M.A. Ford?
Model #: 11475000
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | TiN |
| Overall Length (Inch) | 4 |
| Helix Angle | 30 |
| Chipbreaker | Yes |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 1.5000 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Length Type | Standard |
| Mill Diameter Tolerance | +0.000 to -0.003 in |
| Series | 114 |
