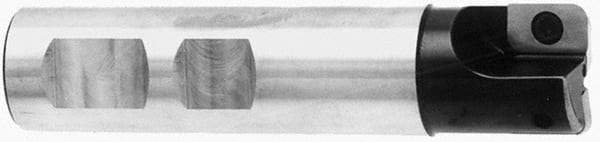

Cutting Tool Technologies - 1-1/4 Inch Cutter Diameter, 2 Style EM 15 Inserts, 1-1/4 Inch Shank Diameter, Indexable Convex Radius Cutter - 5 Inch Overall Length, Through Coolant
Item #: 01866748
Brand: Cutting Tool Technologies
Model #: VEX670C
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutter Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Toolholder Style | VEX |
| Number of Cutter Inserts | 2 |
| Insert Style | EM 15 |
| Maximum Depth of Cut (Decimal Inch) | 0.5500 |
| Shank Type | Straight Shank |
| Through Coolant | Through Coolant |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Head Length (Decimal Inch) | 1.2500 |
