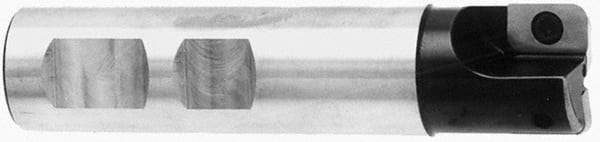

Cutting Tool Technologies - 0.07 to 0.125 Inch Cutting Radius, 1 Inch Cutter Diameter, 2 Style VX 12 Inserts, 1 Inch Shank Diameter, Indexable Convex Radius Cutter - 4.5 Inch Overall Length, Through Coolant
Item #: 01866680
Brand: Cutting Tool Technologies
Model #: VEX-510C
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutter Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Inch) | 1 |
| Minimum Cutting Radius (Decimal Inch) | 0.0700 |
| Maximum Cutting Radius (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Toolholder Style | VEX |
| Number of Cutter Inserts | 2 |
| Insert Style | VX 12 |
| Maximum Depth of Cut (Decimal Inch) | 0.5500 |
| Shank Type | Straight Shank |
| Through Coolant | Through Coolant |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Head Length (Decimal Inch) | 1.2500 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Complete Insert Compatibility | VX12007; VX12015; VX12020; VX12030; VX12060; VX12070; VX12080; VX12090; VX12120; VX12125; VX12140; VX12150; VX12156; VX12160; VX12170; VX12190; VX12200; VX12220; VX12250; VX12312; VX12375 |
