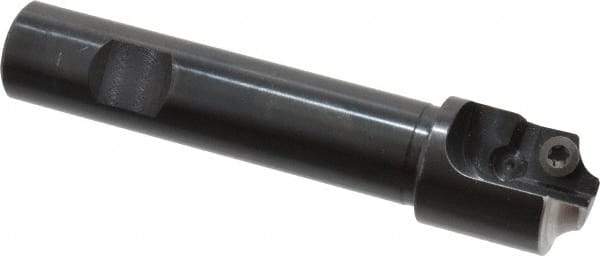

Cutting Tool Technologies - 0.25 to 0.25 Inch Cutting Radius, 1 Inch Cutter Diameter, 1 Style CV 15 Insert, 3/4 Inch Shank Diameter, Indexable Concave Radius Cutter - 4.5 Inch Overall Length, Through Coolant
Item #: 01866623
Brand: Cutting Tool Technologies
Model #: CAV-180C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutter Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Inch) | 1 |
| Minimum Cutting Radius (Decimal Inch) | 0.2500 |
| Maximum Cutting Radius (Decimal Inch) | 0.2500 |
| Insert Cutting Radius (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Toolholder Style | CAV |
| Number of Cutter Inserts | 1 |
| Insert Style | CV 15 |
| Maximum Depth of Cut (Decimal Inch) | 0.6500 |
| Through Coolant | Through Coolant |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Head Length (Decimal Inch) | 1.2500 |
| Complete Insert Compatibility | CV15090; CV15120; CV15160; CV15190; CV15250 |
