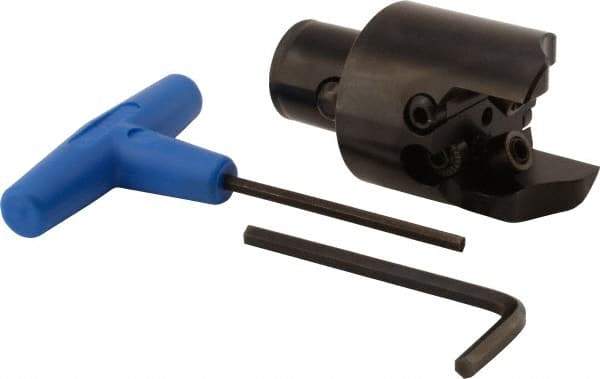

Parlec - 49.02mm Body Diam, Manual Twin Cutter Boring Head - 52.32mm to 83.82mm Bore Diam
Item #: 01848662
Brand: Parlec
Model #: PC5-4505
Exact Tooling IR#: 04
Features and Benefits
Boring heads with two cutters (double edges) are used for roughing operations and can remove material twice as fast as single edge cutters .
Integral shank boring heads have the shank built into the head.
| Product Specifications | |
|---|---|
| Type | Twin Cutter Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 49.02 |
| Body Diameter (Decimal Inch) | 1.9300 |
| Mount Type | Integral Shank |
| Shank Type | Modular Connection |
| Modular Connection Size | PC5 |
| Series | Twin |
| Minimum Bore Diameter (Decimal Inch) | 2.0600 |
| Minimum Bore Diameter (mm) | 52.32 |
| Maximum Bore Diameter (mm) | 83.82 |
| Maximum Bore Diameter (Decimal Inch) | 3.3000 |
| Projection (mm) | 56.90 |
| Projection (Decimal Inch) | 2.2400 |
| Insert Holder Size | 51; 52 |
