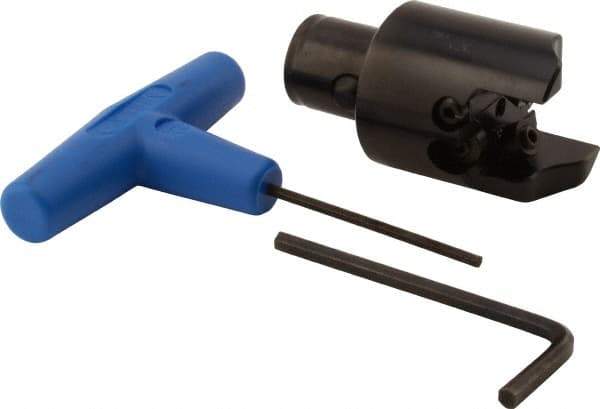

Parlec - 1-1/2" Body Diam, Manual Twin Cutter Boring Head - 40.13mm to 64.26mm Bore Diam
Item #: 01848555
Brand: Parlec
Model #: PC4-4405
Exact Tooling IR#: 04
Features and Benefits
Boring heads with two cutters (double edges) are used for roughing operations and can remove material twice as fast as single edge cutters .
Integral shank boring heads have the shank built into the head.
| Product Specifications | |
|---|---|
| Type | Twin Cutter Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 38.10 |
| Body Diameter (Inch) | 1-1/2 |
| Body Diameter (Decimal Inch) | 1.5000 |
| Mount Type | Integral Shank |
| Shank Type | Modular Connection |
| Modular Connection Size | PC4 |
| Series | Twin |
| Minimum Bore Diameter (Decimal Inch) | 1.5800 |
| Minimum Bore Diameter (mm) | 40.13 |
| Maximum Bore Diameter (mm) | 64.26 |
| Maximum Bore Diameter (Decimal Inch) | 2.5300 |
| Projection (mm) | 46.99 |
| Projection (Decimal Inch) | 1.8500 |
| Insert Holder Size | 41; 42 |
