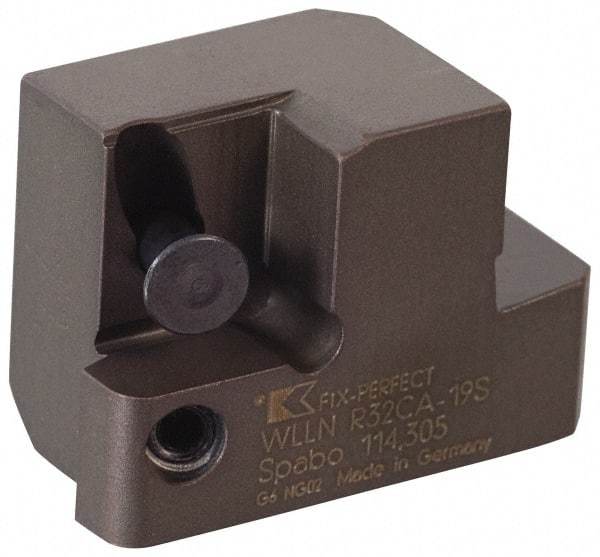

Kennametal - Series Railroad, Right Hand, WLLN Toolholder Compatibility, LNUX Insert Compatibility, Indexable Turning Cartridge - Screw Holding Method, 19mm Max Depth of Cut, 45mm OAL x 22.6mm OAW x 32mm OAH
Item #: 01807759
Brand: Kennametal
Model #: 2435183
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Railroad |
| Cutting Direction | Right Hand |
| Toolholder Style Compatibility | WLLN |
| Insert Style Compatibility | LNUX |
| Insert Holding Method | Screw |
| Overall Length (mm) | 45.00 |
| Overall Length (Decimal Inch) | 1.7717 |
| Overall Width (mm) | 22.60 |
| Overall Width (Decimal Inch) | 0.8898 |
| Overall Height (mm) | 32.00 |
| Overall Height (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Complete Insert Compatibility | LNUX191940... |
