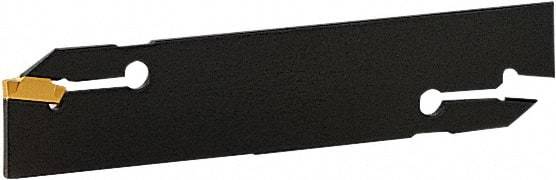

Seco - 1.26" Blade Height, 0.197" Blade Width, 5.9" OAL, Double End Indexable Cut-Off Blade - CFKN 32 Blade, MDT Series
Item #: 01736529
Brand: Seco
Model #: 53885
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (Decimal Inch) | 0.1970 |
| Blade Overall Length (Decimal Inch) | 5.9000 |
| Blade Style | CFKN 32 |
| Insert Style | LC.. |
| Insert Width (mm) | 6.00 |
| Insert Width (Decimal Inch) | 0.2362 |
| Series | MDT |
| Insert Seat Size | 6 |
| Tool Block/Toolholder Style | 150.10 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.8900 |
| Cutting Height (Decimal Inch) | 0.9840 |
| Insert Corner Radius (Decimal Inch) | 0.0160-0.0390 |
| Complete Insert Compatibility | LC.. 1606.. |
