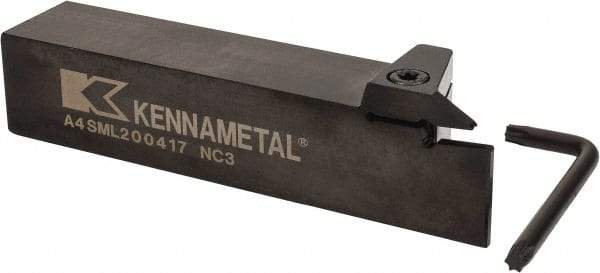

Kennametal - External Thread, 0.67" Max Depth of Cut, 4mm Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1-1/4" Shank Height x 1-1/4" Shank Width, A4..04.. Insert Style, A4SM Toolholder Style, Series A4
Item #: 01723808
Brand: Kennametal
Model #: 1957227
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6700 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Minimum Groove Width (mm) | 4.00 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Series | A4 |
| Toolholder Style | A4SM |
| Insert Compatibility | A4..04.. |
| Shank Height (mm) | 31.75 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (mm) | 39.00 |
| Head Height (Decimal Inch) | 1.5400 |
| Head Length (mm) | 37.00 |
| Head Length (Decimal Inch) | 1.4600 |
| Shank Length (Decimal Inch) | 4.5433 |
| Shank Length (mm) | 115.40 |
