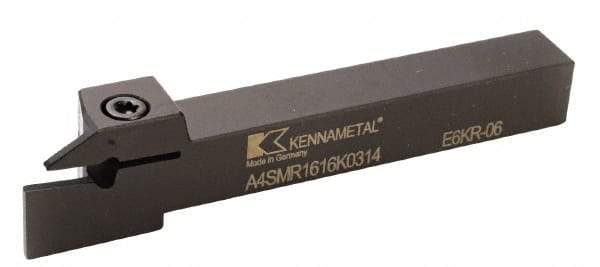

Kennametal - 0.6693" Max Depth of Cut, 4mm Min Groove Width, 150mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 63/64" Shank Height x 63/64" Shank Width, A4..04.. Insert Style, A4SM Toolholder Style, Series A4
Item #: 01708999
Brand: Kennametal
Model #: 1949641
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Series | A4 |
| Toolholder Style | A4SM |
| Insert Compatibility | A4..04.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Inch) | 0.9844 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Inch) | 0.9844 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (mm) | 32.00 |
| Head Height (Decimal Inch) | 1.2598 |
| Head Length (mm) | 37.00 |
| Head Length (Decimal Inch) | 1.4567 |
| Shank Length (Decimal Inch) | 4.4606 |
| Shank Length (mm) | 113.30 |
