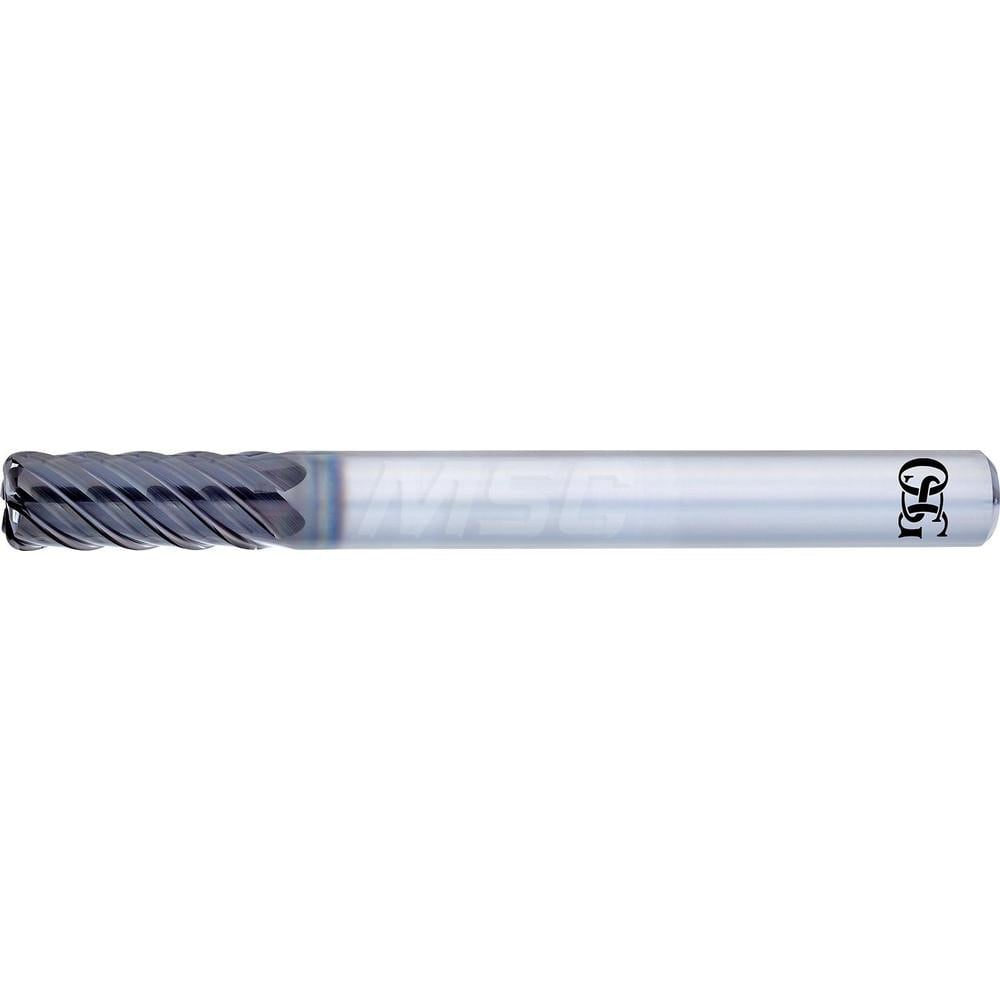

Corner Radius End Mill: 3 mm Dia, 7.50 mm LOC, 0.20 mm Radius, 4 Flute, Solid Carbide
Item #: 17646449
Brand: OSG
Model #: 8549842
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1181 |
| Mill Diameter (mm) | 3.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 7.50 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Duarise |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.20 |
| Overall Length (mm) | 60.00 |
| Coolant Through | No |
| Pitch | Normal |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4375 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 6 |
| Corner Radius Tolerance | 0.00 to -0.02 mm |
| Mill Diameter Tolerance | 0.00/-0.02 mm |
| Shank Diameter Tolerance | h4 |
| Primary Workpiece Material | Hard Material; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; H |
| Series | 8570 |
| Material Application | Hard Material; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | High |
