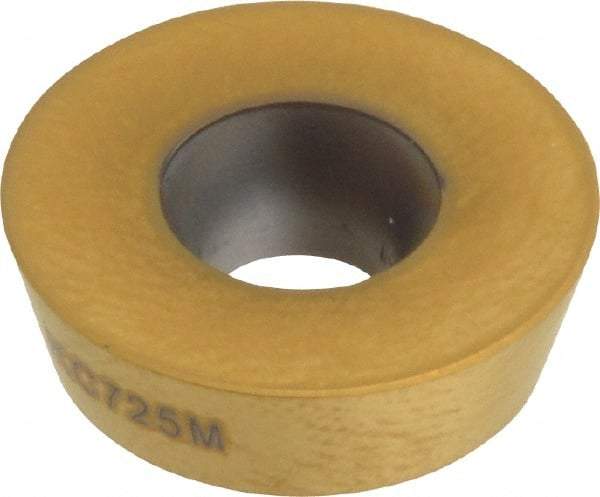

Kennametal - RDHX1604M0 GN Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 3/16" Thick, 16mm Inscribed Circle
Item #: 01696723
Brand: Kennametal
Model #: 1776013
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RDHX |
| Insert Size | 1604M0 |
| Material | Carbide |
| Material Grade | C5/C6/C7 |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Width (Decimal Inch) | 0.6299 |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Hole Diameter (mm) | 5.20 |
| Hole Diameter (Decimal Inch) | 0.2047 |
| Relief Angle | 15.000 |
| Rake Angle | 0 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | GN |
| ISO Number | RDHX1604M0SGN |
