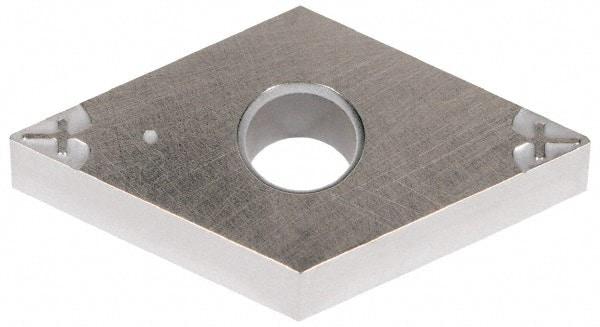

Tungaloy - DNGG431 Grade NS520 Cermet Turning Insert - Uncoated, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 01685510
Brand: Tungaloy
Model #: 6803196
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DNGG |
| Insert Size | 431 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | NS520 |
| Coating | Uncoated |
| Material Grade | C2/C3/C4/C7/C8 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Included Angle | 55 |
| Insert Holding Method | Clamp |
| Shape | Diamond |
