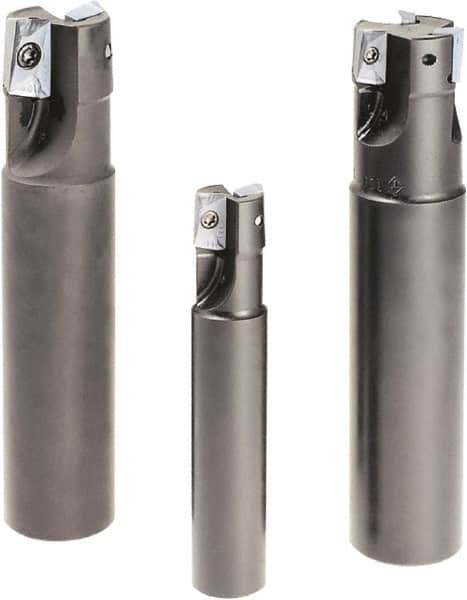

Tungaloy - 1" Cut Diam, 0.642" Max Depth of Cut, 1" Shank Diam, 3.74" OAL, Indexable Square Shoulder End Mill - ASMT 1705.. Inserts, Weldon Shank, 90° Lead Angle
Item #: 01682384
Brand: Tungaloy
Model #: 6829505
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 3.7400 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6420 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | EPS |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.3800 |
| Weldon Flat | Yes |
| Insert Compatibility | ASMT 1705.. |
| Shank Length (Decimal Inch) | 2.3600 |
| Toolholder Style Included in Kit | EPS17100RSU |
