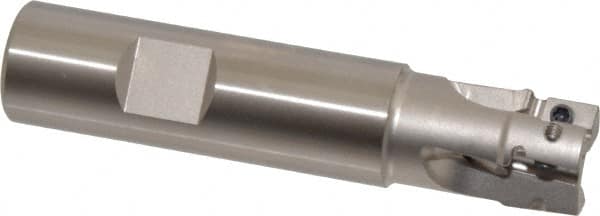

Tungaloy - 3/4" Cut Diam, 0.429" Max Depth of Cut, 3/4" Shank Diam, 3.54" OAL, Indexable Square Shoulder End Mill - ASMT 11T3.. Inserts, Weldon Shank, 90° Lead Angle
Item #: 01682301
Brand: Tungaloy
Model #: 6821734
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.5400 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.4290 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | EPS |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.1800 |
| Weldon Flat | Yes |
| Insert Compatibility | ASMT 11T3.. |
| Shank Length (Decimal Inch) | 2.3600 |
| Toolholder Style Included in Kit | EPS11075RSBU |
