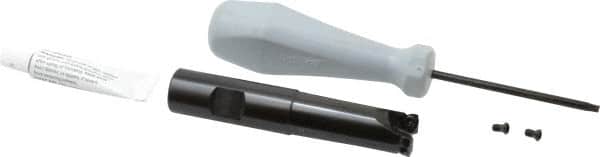

Tungaloy - 3/4" Cut Diam, 0.06" Max Depth, 3/4" Shank Diam, Weldon Shank Indexable High-Feed End Mill - Screw Holding Method, WPM. 05H3.. Insert, EXP Toolholder
Item #: 01682145
Brand: Tungaloy
Model #: 6843468
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 2 |
| Insert Style | WPM. 05H3.. |
| Toolholder Style | EXP |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Through Coolant | NonThrough Coolant |
| Head Length (Decimal Inch) | 2.0000 |
| Overall Length (Decimal Inch) | 4.0310 |
| Projection (Decimal Inch) | 4.0310 |
