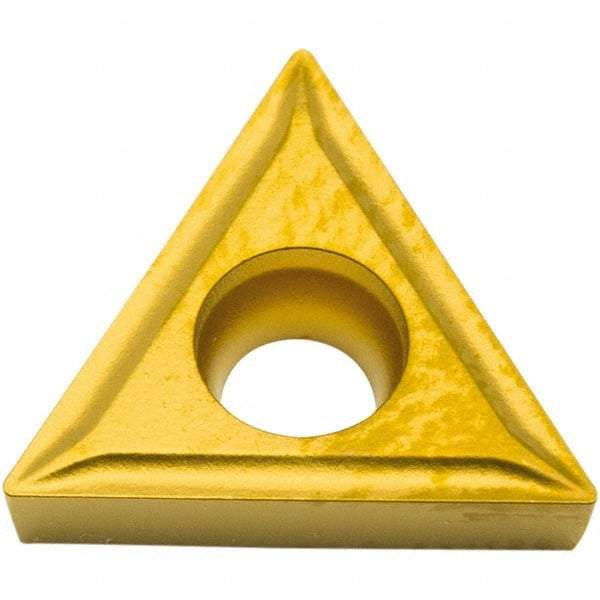

Parlec - TCMT111600 Polycrystalline Diamond (PCD) Boring Insert - Uncoated, 60° Triangle, 7° Relief Angle, 1/4" Inscr Circle, 0.094" Thick, 0.016" Corner Radius
Item #: 01529346
Brand: Parlec
Model #: T111600PCD
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Material | Polycrystalline Diamond (PCD) |
| Insert Style | TCMT |
| Insert Size | 111600 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1080 |
| Rake | Positive |
| Relief Angle | 7 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
