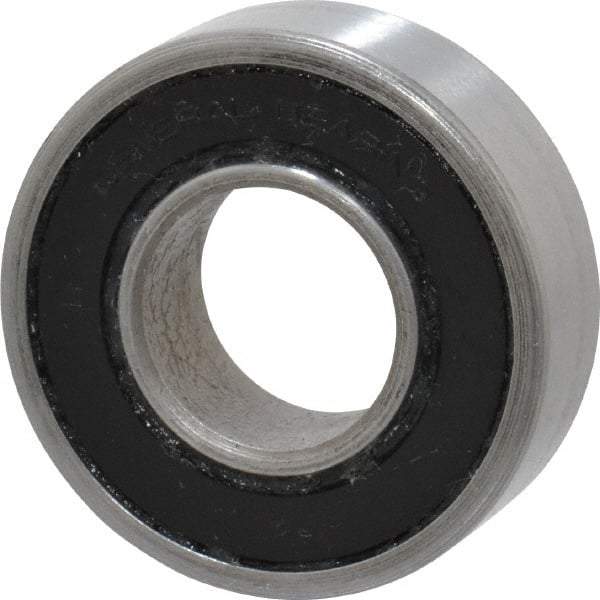

Value Collection - 5/8" Bore Diam, 1-3/8" OD, Double Seal Unground Retainer Type Radial Ball Bearing - 7/16" Wide, 1 Row, Round Bore, 915 Lb Dynamic Capacity
Item #: 01377803
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Unground retainer type bearings are used at moderate speeds up to 2,500. They are economical and offer an anti-friction operation.
Double Seal Bearings are factory lubricated with oil or grease and designed to retain lubricants while keeping contaminates out. The seal is on each side of the bearing and is located on the outer race making some contact with the inner race.
Round bore bearings are designed for mounting on round shafts.
| Product Specifications | |
|---|---|
| Type | Unground Retainer Type |
| Style | Double Seal |
| Bore Diameter (Inch) | 5/8 |
| Bore Diameter (Decimal Inch) | 0.6250 |
| Outside Diameter (Inch) | 1-3/8 |
| Outside Diameter (Decimal Inch) | 1.3750 |
| Width (Inch) | 7/16 |
| Width (Decimal Inch) | 0.4370 |
| Flange Type | Without Flange |
| Number of Rows | 1 |
| Bore Type | Round |
| Housing Material | Carbon steel |
| Snap Ring Included | Without Snap Ring |
| Dynamic Load Capacity (Lb.) | 915 |
| Maximum RPM | 2500 |
