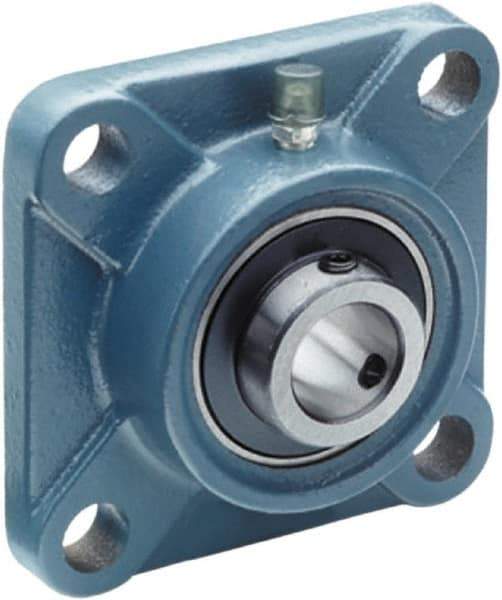

Tritan - 2-3/16" ID, 6.38" OAL x 2.3" OAH 4-Bolt Flange - 6,564 Lb Static Cap, 9,779 Lb Dyn Cap, 5.12" Btw Mnt Hole Ctrs, 0.98" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 01314020
Brand: Tritan
Model #: UCF211-35
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Decimal Inch) | 2.1875 |
| Inside Diameter (Inch) | 2-3/16 |
| Width (Decimal Inch) | 6.3800 |
| Overall Length (Decimal Inch) | 6.3800 |
| Overall Height (Decimal Inch) | 2.3000 |
| Static Load Capacity (Pounds) | 6564.00 |
| Dynamic Load Capacity (Pounds) | 9779 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.1200 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 0.9800 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 5/8 |
| Metric Bolt Size | 16.0000 |
