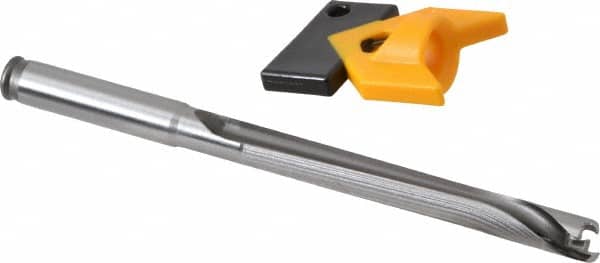

Kennametal - 9 to 9.49mm Diam, 8xD, 76mm Max Depth, 3/8" Shank Diam, 88.2mm Flute, 133.35mm OAL, Replaceable Tip Drill - KTIP03580HP Insert, H Seat Size, Series KenTIP
Item #: 01243476
Brand: Kennametal
Model #: 2542071
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 9.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3543 |
| Maximum Drill Diameter (mm) | 9.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.3736 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 2.9900 |
| Maximum Drill Depth (mm) | 76.00 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Style | KTIP03580HP |
| Insert Seat Size | H |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 1.40 |
| Coolant Hole Diameter (Decimal Inch) | 0.0551 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0630 |
| Flute Length (mm) | 88.20 |
| Flute Length (Decimal Inch) | 3.4724 |
| Overall Length (mm) | 133.35 |
| Overall Length (Decimal Inch) | 5.2500 |
| Shank Length (mm) | 40.39 |
| Shank Length (Decimal Inch) | 1.5900 |
