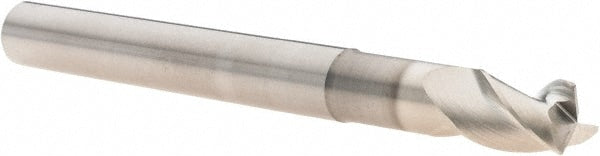

Corner Radius End Mill: 10 mm Dia, 14.00 mm LOC, 0.50 mm Radius, 3 Flute, Solid Carbide
Item #: 45179892
Brand: SGS
Model #: 44798
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 14.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | TIB2 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0197 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Overall Length (mm) | 100 |
| Coolant Through | No |
| Pitch | Coarse |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5512 |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 10.00 |
| Neck Diameter (mm) | 9.48 |
| Reach Length (Decimal Inch) | 1.3780 |
| Reach Length (mm) | 35.00 |
| Corner Radius Tolerance | +0.00000 to -0.05000 mm |
| Mill Diameter Tolerance | -0.0090/0.0000 mm |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Non-Ferrous Metal |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | N |
| Material Grade | Micrograin |
| Series | 43ML |
| Material Application | Non-Ferrous Metal |
| Proprietary Coating Designation | Ti-NAMITE-B |
| For Use With. | End Mill Toolholders |
| Helix Style | High |
