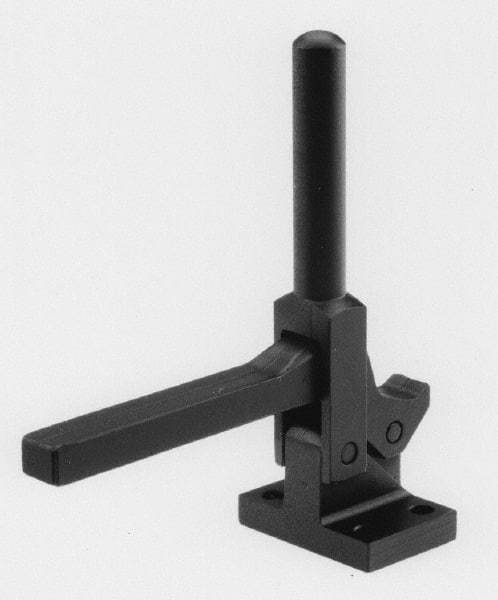

De-Sta-Co - 1,600 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 80° Handle Movement, 80° Bar Opening, Solid Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel
Item #: 01208982
Brand: De-Sta-Co
Model #: 7-60
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
Solid Bars are designed to retain a spindle that is fixed to a specific position on the bar. The spindle retainers are commonly welded to the bar of the clamp at a customer specified position. Generally, the solid bar models have greater holding capacity than the equivalent U-bar model.
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (N) | 7120.00 |
| Holding Capacity (Lb.) | 1600.00 |
| Length Distance Between Mount Holes (mm) | 41.15 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.62 |
| Width Distance Between Mount Holes (mm) | 53.85 |
| Width Distance Between Mount Holes (Decimal Inch) | 2.1200 |
| Height Under Bar (mm) | 63.50 |
| Height Under Bar (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 187.96 |
| Overall Length (Decimal Inch) | 7.4000 |
| Overall Height (mm) | 241.30 |
| Overall Height (Decimal Inch) | 9.5000 |
| Base Length (mm) | 61.98 |
| Base Length (Decimal Inch) | 2.4400 |
| Base Width (mm) | 73.15 |
| Base Width (Decimal Inch) | 2.8800 |
| Handle Style | Straight |
| Material | Carbon Steel |
| Finish/Coating | Electro-Plated Zinc |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter (mm) | 10.41 |
| Mounting Hole Diameter (Decimal Inch) | 0.4100 |
| Front of Base To Tip Of Toggle Bar (mm) | 111.25 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 4.3800 |
| Bar Opening (Degrees) | 80.00 |
| Handle Movement (Degrees) | 80.00 |
| Bar Width (Decimal Inch) | 0.8800 |
| Bar Width (mm) | 22.35 |
| Bar Thickness (mm) | 19.10 |
| Bar Thickness (Decimal Inch) | 0.7520 |
