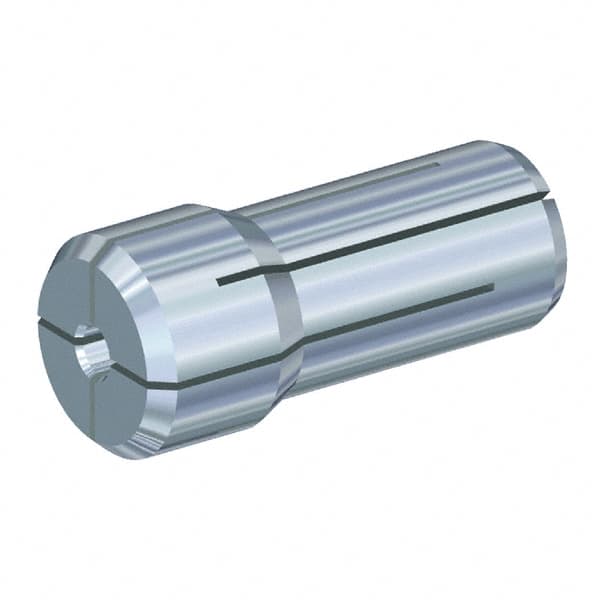

Kennametal - 0.0984 Inch, 2.15 to 2.5 mm Collet Capacity, Series DA000 Double Angle Collet - 0.66 Inch Overall Length, 0.27 Inch Overall Diameter, 0.001 Inch TIR
Item #: 01179977
Brand: Kennametal
Model #: 1293416
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | DA Collet |
| Collet Series | DA000 |
| Size (Decimal Inch) | 0.0984 |
| Size (mm) | 2.50 |
| Overall Length (mm) | 16.76 |
| Overall Length (Decimal Inch) | 0.6600 |
| Overall Diameter (mm) | 6.86 |
| Overall Diameter (Decimal Inch) | 0.2700 |
| Minimum Collet Capacity (mm) | 2.15 |
| Maximum Collet Capacity (mm) | 2.50 |
| TIR (mm) | 0.0300 |
| TIR (Decimal Inch) | 0.001000 |
| PSC Code | 5136 |
