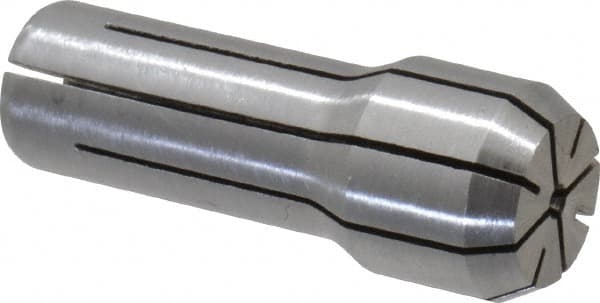

Kennametal - 0.0394 Inch, 0.2 to 1 mm Collet Capacity, Series DA300 Double Angle Collet - 1 Inch Overall Length, 3/8 Inch Overall Diameter, 0.001 Inch TIR
Item #: 01179878
Brand: Kennametal
Model #: 1297411
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | DA Collet |
| Collet Series | DA300 |
| Size (Decimal Inch) | 0.0394 |
| Size (mm) | 1.00 |
| Overall Length (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 1 |
| Overall Diameter (mm) | 9.53 |
| Overall Diameter (Decimal Inch) | 0.3750 |
| Minimum Collet Capacity (mm) | 0.20 |
| Maximum Collet Capacity (mm) | 1.00 |
| TIR (mm) | 0.0300 |
| TIR (Decimal Inch) | 0.001000 |
| PSC Code | 5136 |
