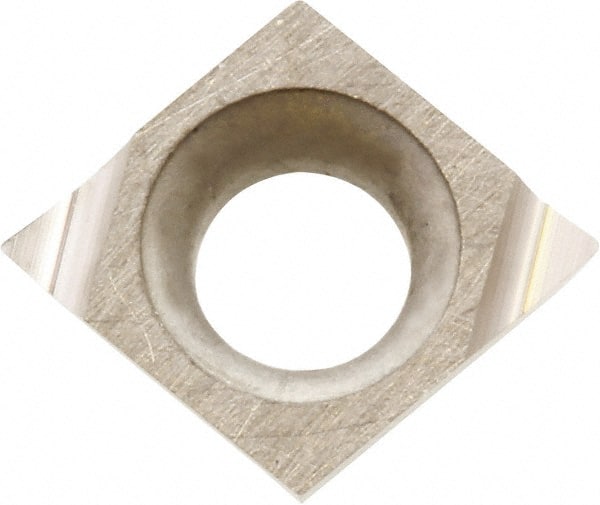

Kyocera - CCGT11091 F Grade KW10 Carbide Turning Insert
Item #: 50363431
Brand: Kyocera
Model #: 8800182
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 11091 |
| Material | Carbide |
| Inscribed Circle (mm) | 3.51 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Thickness (Decimal Inch) | 0.0550 |
| Thickness (mm) | 1.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KW10 |
| Coating | Uncoated |
| Material Grade | K10 |
| Chip Breaker | F |
| Hole Diameter (mm) | 1.91 |
| Hole Diameter (Decimal Inch) | 0.0750 |
| ISO Number | CCGT030104L-F |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | CCGT11091LF KW10 |
| Primary Workpiece Material | N |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Material | Carbide |
| Cutting Direction | Left Hand |
| Corner Radius (Decimal Inch) | 1/64 |
| Coating | Uncoated |
| Inscribed Circle (mm) | 3.51 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Material Grade | K10 |
| Material | Carbide |
| Manufacturer's Grade | KW10 |
| Insert Style | CCGT |
| Insert Size | 11091 |
| Thickness (mm) | 1.40 |
| Thickness (Decimal Inch) | 0.0550 |
| Shape | Diamond |
| Corner Radius (Decimal Inch) | 0.0156 |
| Coating | Uncoated |
| Thickness (Decimal Inch) | 0.0550 |
| Material Grade | K10 |
| Material | Carbide |
| Manufacturer's Grade | KW10 |
| Insert Style | CCGT |
| Insert Size | 11091 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
