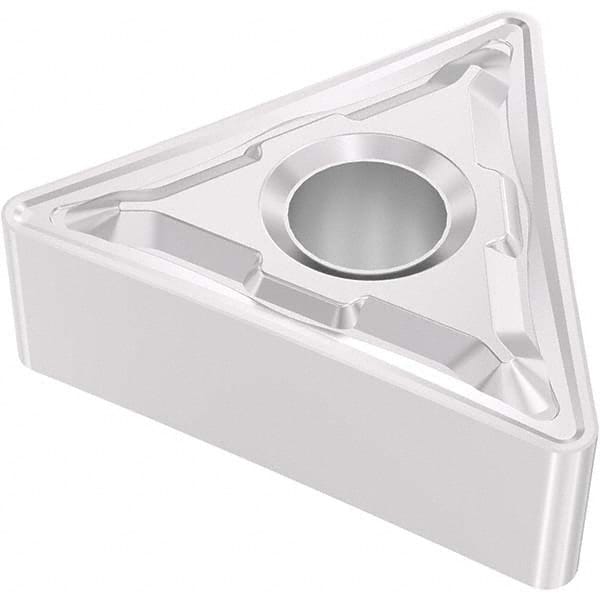

Seco - TNMG544 M5 Grade TM2501 Carbide Turning Insert
Item #: 18615021
Brand: Seco
Model #: 03280008
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 544 |
| Material | Carbide |
| Length (Decimal Inch) | 0.9283 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 1/16 |
| Manufacturer's Grade | TM2501 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | M5 |
| Overall Length (Decimal Inch) | 1.0823 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | TNMG270616 |
| Lead Angle | 93.000 |
| Rake | Negative |
| Rake Angle | 17 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TNMG544-M5 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Triangle |
