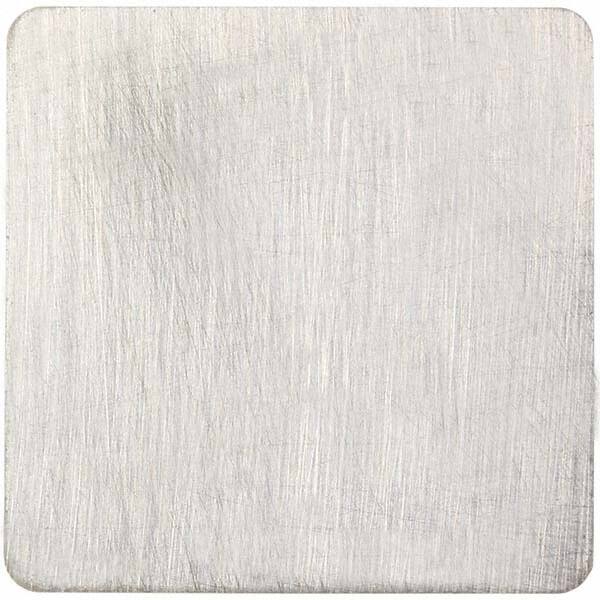

Kyocera - SPM423 Grade TN620 Cermet Turning Insert
Item #: 11384237
Brand: Kyocera
Model #: 8862689
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | SPM |
| Insert Size | 423 |
| Material | Cermet |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | TN620 |
| Coating | TiCN |
| ISO Number | SPMN120312 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | SPM423 TN620 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Insert Hand | Neutral |
| Series | SPM |
| Insert Holding Method | Clamp |
| Multi Use Application | External Turning, Facing, Chamfering, Boring |
| MultiUseTool | Yes |
| Shape | Square |
