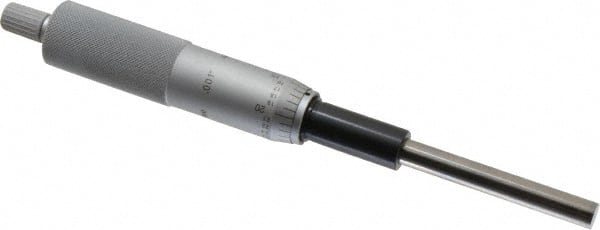

Mitutoyo - 2 Inch, 0.8268 Inch Ratchet Stop Thimble, 0.315 Inch Diameter x 59mm Long Spindle, Mechanical Micrometer Head
Item #: 06268841
Brand: Mitutoyo
Model #: 151-272
| Product Specifications | |
|---|---|
| Minimum Measurement (Inch) | 0 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Inch) | 2 |
| Maximum Measurement (Decimal Inch) | 2.0000 |
| Thimble Diameter (mm) | 21.00 |
| Thimble Diameter (Decimal Inch) | 0.8268 |
| Digital Counter | No |
| Spindle Diameter (mm) | 8.00 |
| Spindle Diameter (Decimal Inch) | 0.3150 |
| Spindle Length (mm) | 59.00 |
| Overall Length (mm) | 191 (Open); 241 (Closed) |
| Overall Length (Decimal Inch) | 7.5200 |
| Graduation (mm) | 0.0100 |
| Graduation (Decimal Inch) | 0.0010 |
| Stem Diameter (Decimal Inch) | 0.5000 |
| Spindle Type | Flat |
| Rotating Spindle | Yes |
| Accuracy (Decimal Inch) | 0.000200 |
| Thimble Type | Ratchet Stop |
| Stem Length (mm) | 29.00 |
| Reverse Reading | No |
| Clamp Nut Supplied | No |
| Measuring Face Material | Carbide |
| Finish/Coating | Chrome Plated |
| Number of Extension Rods | 0 |
