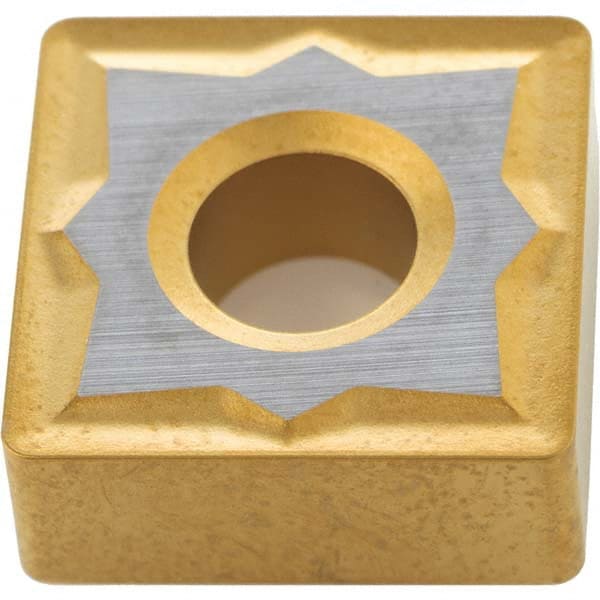

Seco - SNMG432 M3 Grade CP500 Carbide Turning Insert
Item #: 96228341
Brand: Seco
Model #: 03309553
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 432 |
| Material | Carbide |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN |
| Chip Breaker | M3 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Lead Angle | 75.000 |
| Rake | Negative |
| Rake Angle | 17 |
| Coating Process | PVD |
| Manufacturers Catalog Number | SNMG432-M3 |
| Included Angle | 90 |
| Cutting Direction | Right Hand |
| Insert Hand | Neutral |
| Series | SNMG |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| Shape | Square |
