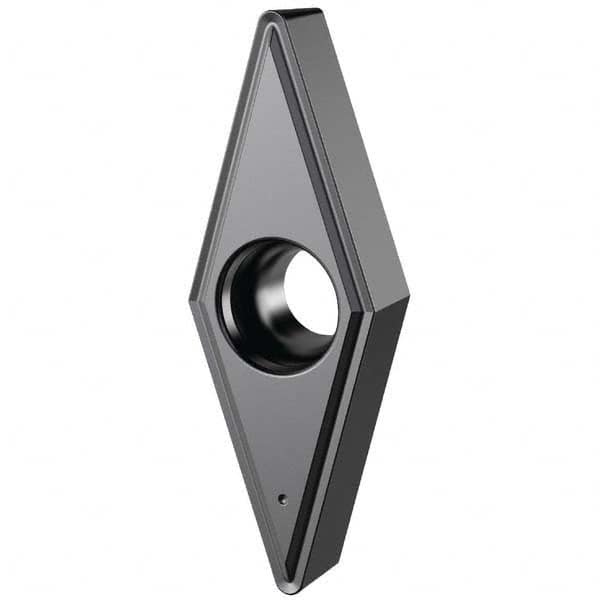

Kennametal - 3305VBGT LF Grade KCS10B Carbide Turning Insert
Item #: 12255337
Brand: Kennametal
Model #: 6687069
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBGT |
| Insert Size | 3305 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6538 |
| Inscribed Circle (Decimal Inch) | 0.1732 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCS10B |
| Coating | AlTiN |
| Chip Breaker | LF |
| Insert Length (Decimal Inch) | 0.6538 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | VBGT160402LF |
| Relief Angle | 5 |
| Manufacturers Catalog Number | VBGT3305LF |
| Series | VBGT |
| Shape | Diamond/Rhombic |
