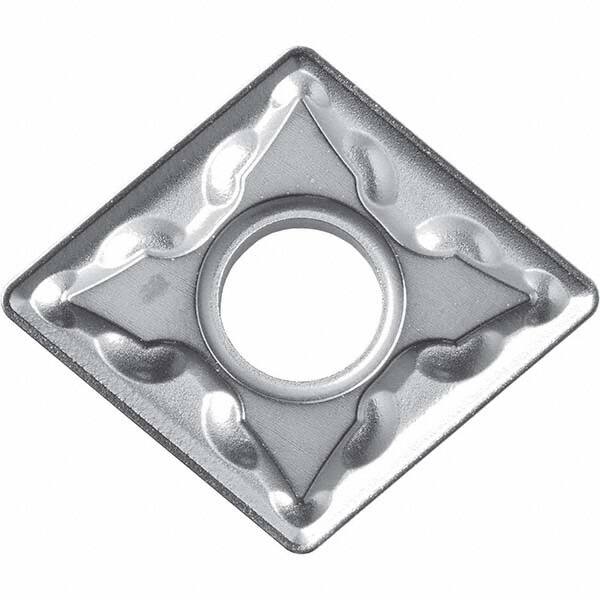

Kyocera - CNMG431 GS Grade TN620 Cermet Turning Insert
Item #: 11383726
Brand: Kyocera
Model #: 8862551
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 431 |
| Material | Cermet |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | TN620 |
| Coating | TiCN |
| Chip Breaker | GS |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNMG120404GS |
| Rake | Negative |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | CNMG431GS TN620 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | CNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Diamond |
