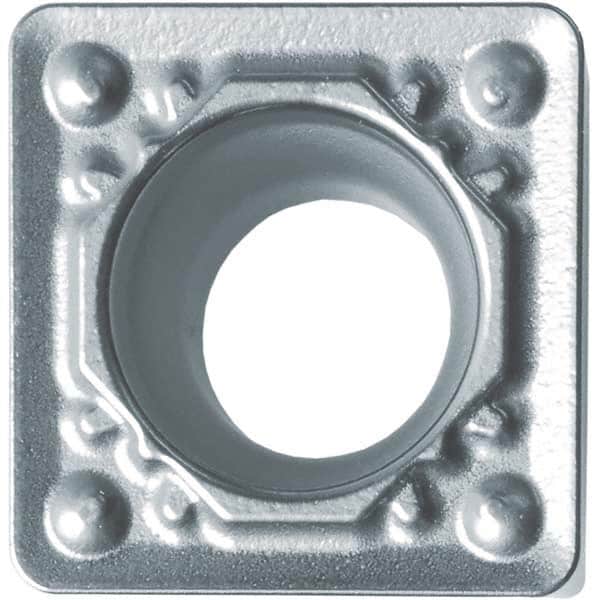

Kyocera - SCMT3251 HQ Grade TN620 Cermet Turning Insert
Item #: 96209267
Brand: Kyocera
Model #: 8862623
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 3251 |
| Material | Cermet |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | TN620 |
| Coating | TiCN |
| Chip Breaker | HQ |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | SCMT09T304HQ |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | SCMT3251HQ TN620 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Insert Hand | Neutral |
| Series | SCMT |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Chamfering, Boring |
| MultiUseTool | Yes |
| Shape | Square |
