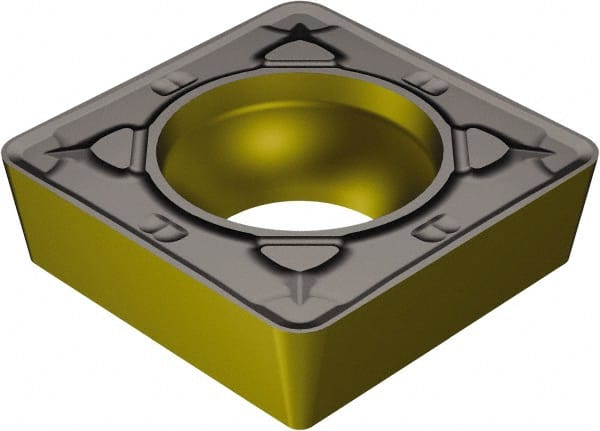

Sandvik Coromant - SCMT433 3205 Grade Carbide Turning Insert
Item #: 49452394
Brand: Sandvik Coromant
Model #: 5749448
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | 3205 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | KR |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| ISO Number | SCMT120412KR3205 |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5749448 |
| Primary Workpiece Material | K |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Material | Carbide |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 3/64 |
| Coating Process | MTCVD |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Material | Carbide |
| Manufacturer's Grade | 3205 |
| Insert Style | SCMT |
| Insert Size | 433 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Shape | Square |
| Corner Radius (Decimal Inch) | 0.0472 |
| Coating Process | MTCVD |
| Coating | TiCN/Al2O3/TiN |
| Thickness (Decimal Inch) | 0.1874 |
| Material | Carbide |
| Manufacturer's Grade | 3205 |
| Insert Style | SCMT |
| Insert Size | 433 |
| Series | CoroTurn 107 |
| Cutting Direction | Neutral |
| Series | CoroTurn 107 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 11.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4528 |
| Insert Holding Method | Screw |
| Shape | Square |
