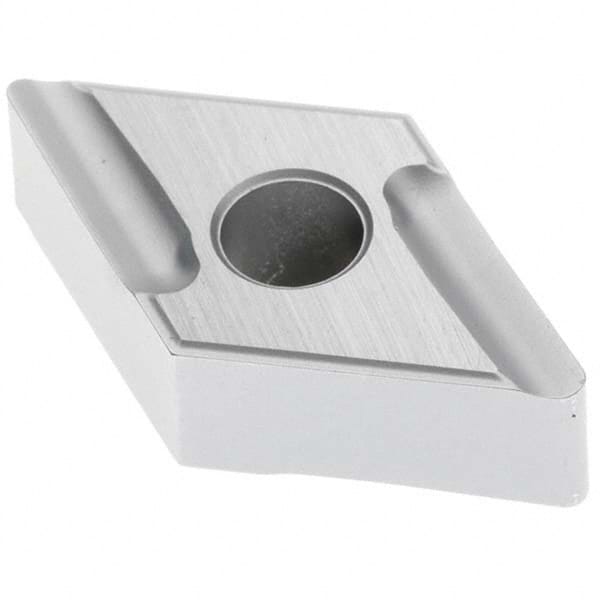

Seco - DNMG442 UX Grade TP25 Carbide Turning Insert
Item #: 96228168
Brand: Seco
Model #: 03310333
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 442 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6102 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | TP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | UX |
| Hole Diameter (Decimal Inch) | 0.2040 |
| Lead Angle | 93.000 |
| Rake | Negative |
| Rake Angle | 20 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMG442R-UX |
| Included Angle | 55 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | DNMG |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| Shape | Diamond |
