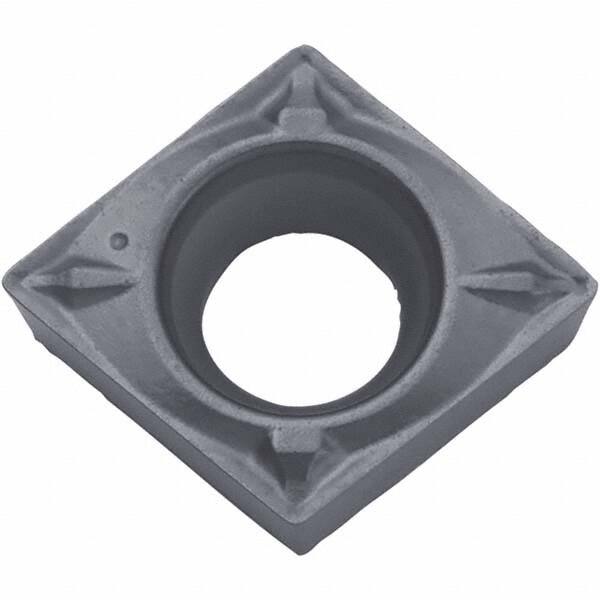

Kyocera - CCMT21505 WP Grade PR1725 Carbide Turning Insert
Item #: 96189790
Brand: Kyocera
Model #: 8863335
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 21505 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | PR1725 |
| Coating | Megacoat Nano Plus |
| Chip Breaker | WP |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | CCMT060202WP |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCMT21505WP PR1725 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | CCMT |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Wiper Edge |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Diamond |
