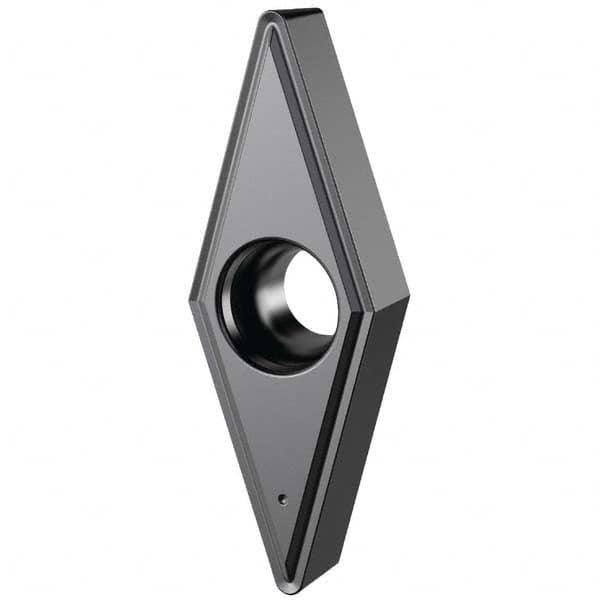

Kennametal - 222VBGT LF Grade KCS10B Carbide Turning Insert
Item #: 12255055
Brand: Kennametal
Model #: 6687068
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBGT |
| Insert Size | 222 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4359 |
| Inscribed Circle (Decimal Inch) | 0.1102 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | KCS10B |
| Coating | AlTiN |
| Chip Breaker | LF |
| Insert Length (Decimal Inch) | 0.4359 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | VBGT110308LF |
| Relief Angle | 5 |
| Manufacturers Catalog Number | VBGT222LF |
| Series | VBGT |
| Shape | Diamond/Rhombic |
