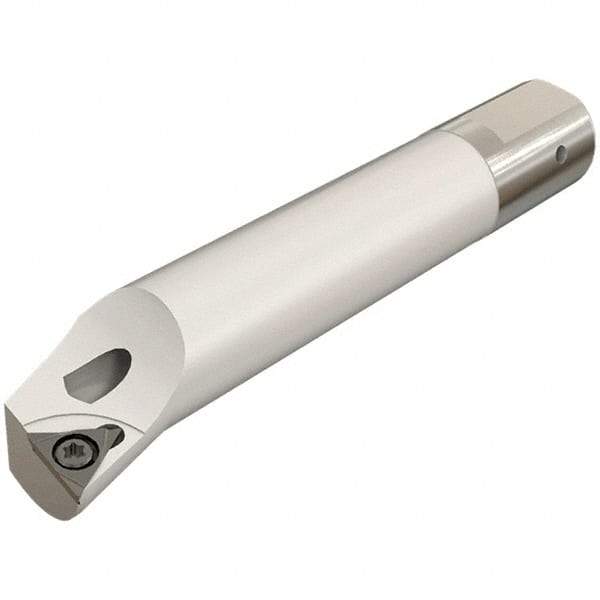

Iscar - 10.01mm Min Bore Diam, 51.99mm OAL, 8mm Shank Diam, IHAXF Indexable Boring Bar - TPGX 73.. Insert
Item #: 00905810
Brand: Iscar
Model #: 4550703
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | IHAXF |
| Series | Itsbore |
| Minimum Bore Diameter (mm) | 10.01 |
| Minimum Bore Diameter (Decimal Inch) | 0.3940 |
| Overall Length (mm) | 51.99 |
| Overall Length (Decimal Inch) | 2.0470 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | TPGX 73.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Positive |
| Lead Angle | 3 |
| Maximum Bore Diameter (mm) | 11.99 |
| Maximum Bore Diameter (Decimal Inch) | 0.4720 |
| Rake Angle | 3 (Axial), 6 (Radial) |
| Complete Insert Compatibility | TPGX 730; TPGX 730-L; TPGX 730T; TPGX 731; TPGX 731-L; TPGX 731T |
