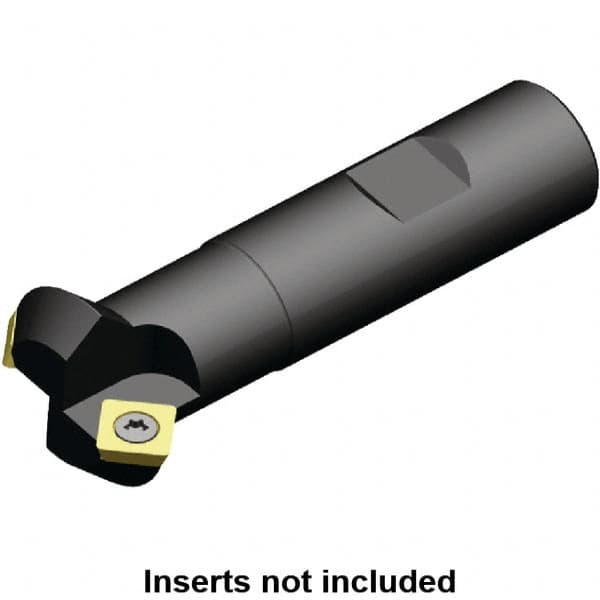

Kennametal - 45° Lead Angle, 22mm Max Cut Diam, 10mm Min Cut Diam, 6.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 1 Insert, SD.. 0903.. Insert Style, 82.7mm Overall Length, Straight Shank, 90° Included Angle
Item #: 00743922
Brand: Kennametal
Model #: 1024578
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.3937 |
| Minimum Cutting Diameter (mm) | 10.00 |
| Maximum Cutting Diameter (mm) | 22.00 |
| Maximum Cutting Diameter (Decimal Inch) | 0.8661 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Lead Angle | 45 |
| Included Angle | 90 |
| Overall Length (mm) | 82.70 |
| Overall Length (Decimal Inch) | 3.2559 |
| Insert Style | SD.. 0903.. |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.50 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Head Length (mm) | 33.70 |
| Weldon Flat | Yes |
| Shank Length (mm) | 49.00 |
| Shank Length (Decimal Inch) | 1.9291 |
| Maximum RPM | 33780 |
