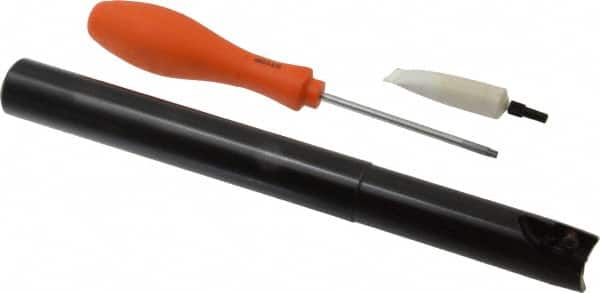

Kennametal - 1" Cut Diam, 18mm Max Depth of Cut, 1" Shank Diam, 254mm OAL, Indexable Square Shoulder End Mill - EC18.., EP18.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant
Item #: 00692624
Brand: Kennametal
Model #: 2267535
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (mm) | 254.00 |
| Overall Length/Projection (Decimal Inch) | 10.0000 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7100 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | Mill 1-18 |
| Number of Flutes | 2 |
| Head Length (mm) | 95.25 |
| Head Length (Decimal Inch) | 3.7500 |
| Weldon Flat | No |
| Insert Compatibility | EC18.., EP18.. |
| Shank Length (Decimal Inch) | 6.2500 |
| Shank Length (mm) | 158.75 |
| Maximum RPM | 37000 |
| Coolant Hole Diameter (mm) | 6.35 |
| Coolant Hole Diameter (Inch) | 1/4 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
