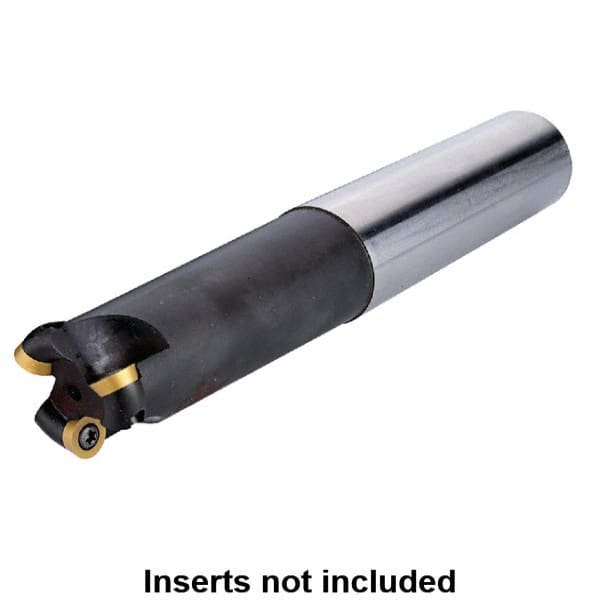

Kennametal - 3/4" Cutting Diam, 3/4" Shank Diam, 3/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RDHX 12T Insert, KDM Toolholder, Through Coolant
Item #: 00692590
Brand: Kennametal
Model #: 2251759
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Cutter Inserts | 3 |
| Insert Style | RDHX 12T |
| Toolholder Style | KDM |
| Overall Length (mm) | 153.16 |
| Overall Length (Decimal Inch) | 6.0300 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 19.76 |
| Head Length (mm) | 95.25 |
| Head Length (Decimal Inch) | 3.7500 |
| Shank Length (mm) | 57.91 |
| Shank Length (Decimal Inch) | 2.2799 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
